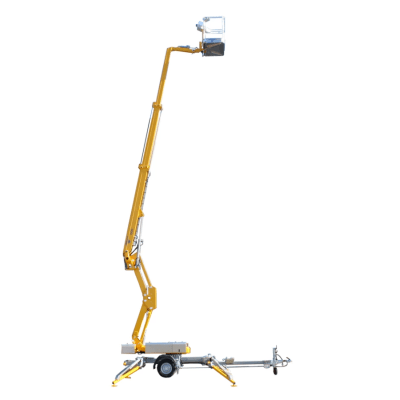

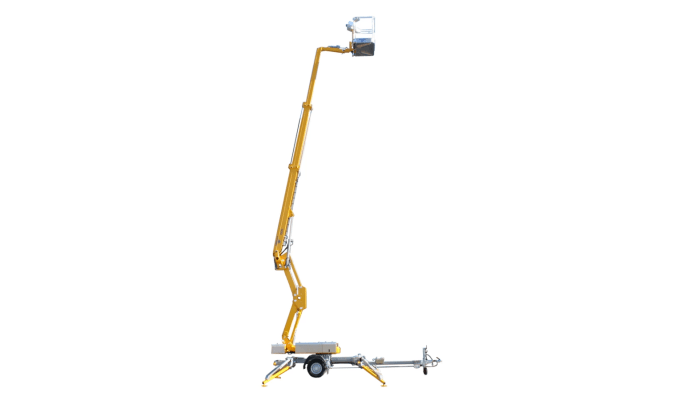

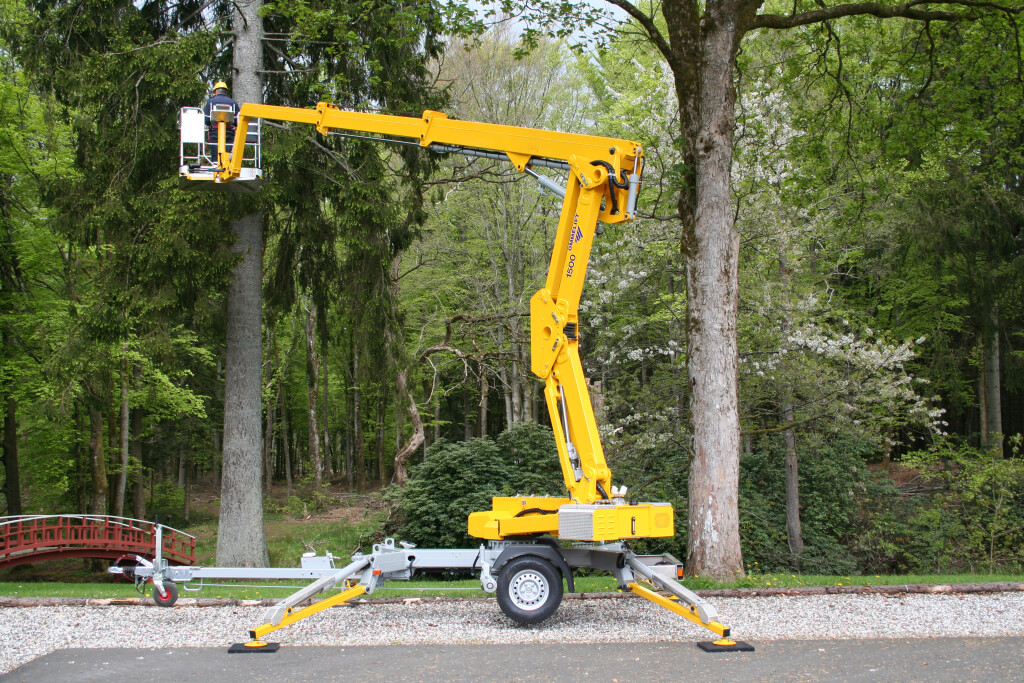

1500 EX / EXB
- Compact dimensions

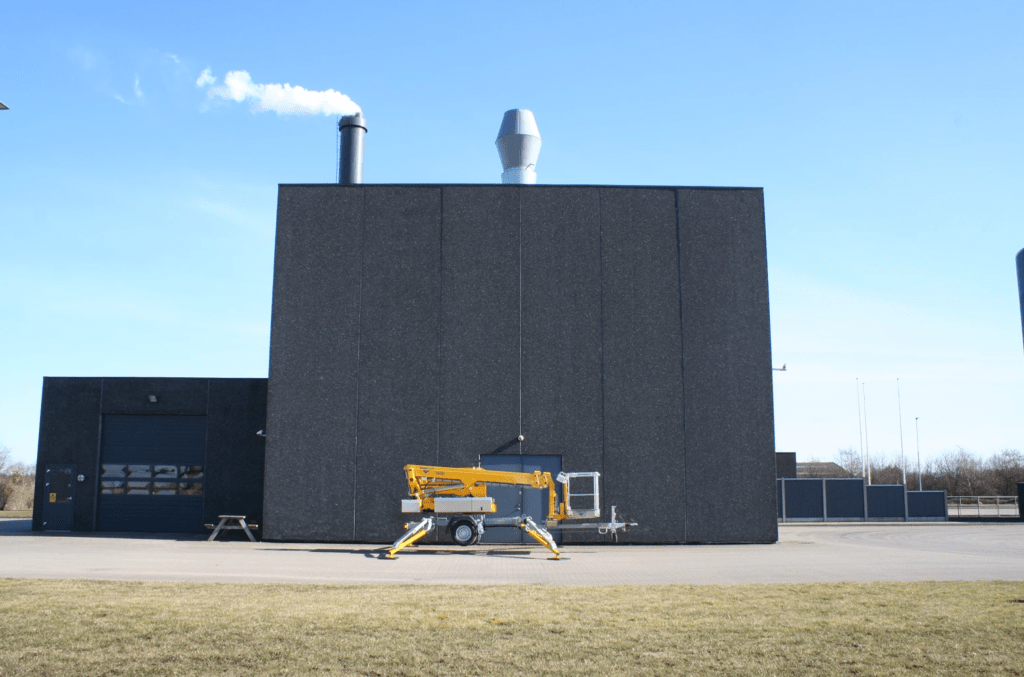

- Travelling length 6.04 m. (19'7") and 1.99 m. height (6'6")
- 230 kg basket load (500 lbs)
- Total weight 2.000 kg. (4409 lbs)

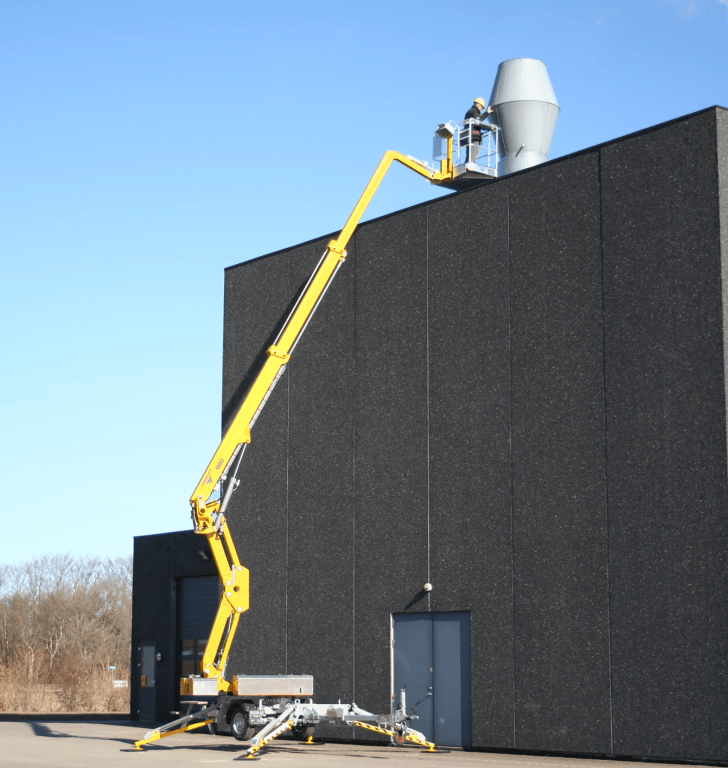

- 8.5 m outreach (27'9")
1500 EXB is powered by a heavy-duty battery pack, in total 24V/139 Ah/5h. Operation is possible independently of 230 V mains connection.
The total weight of 2.000 kg. makes it easy to transport it after the towing vehicle.
1500 EX is powered by an electric motor, connected to 230 V mains and is especially suitable where continuous operation is required.

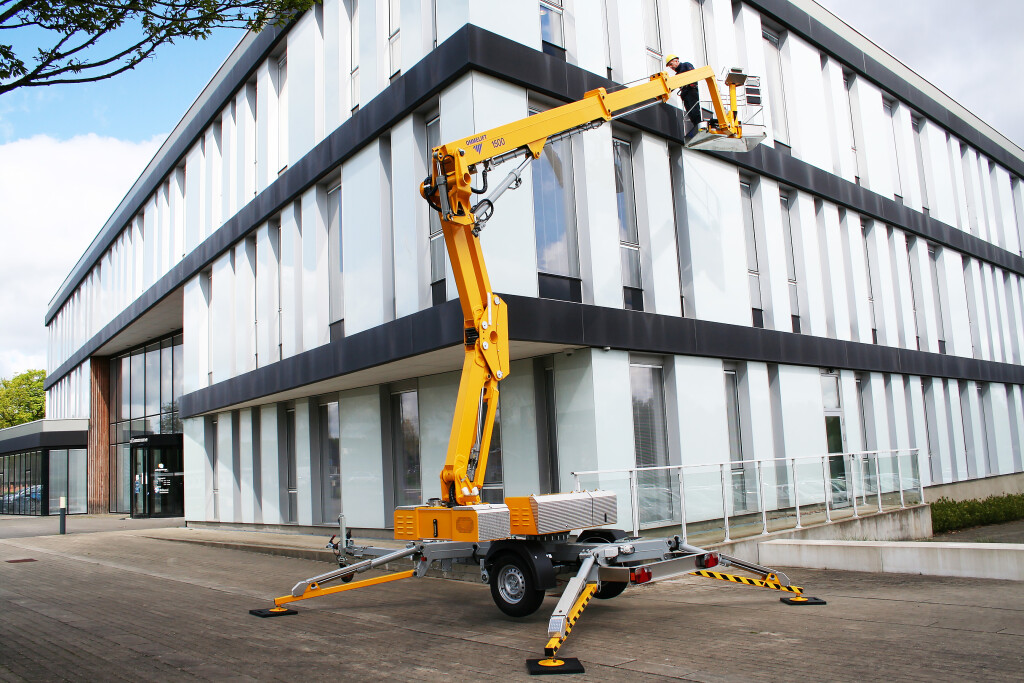

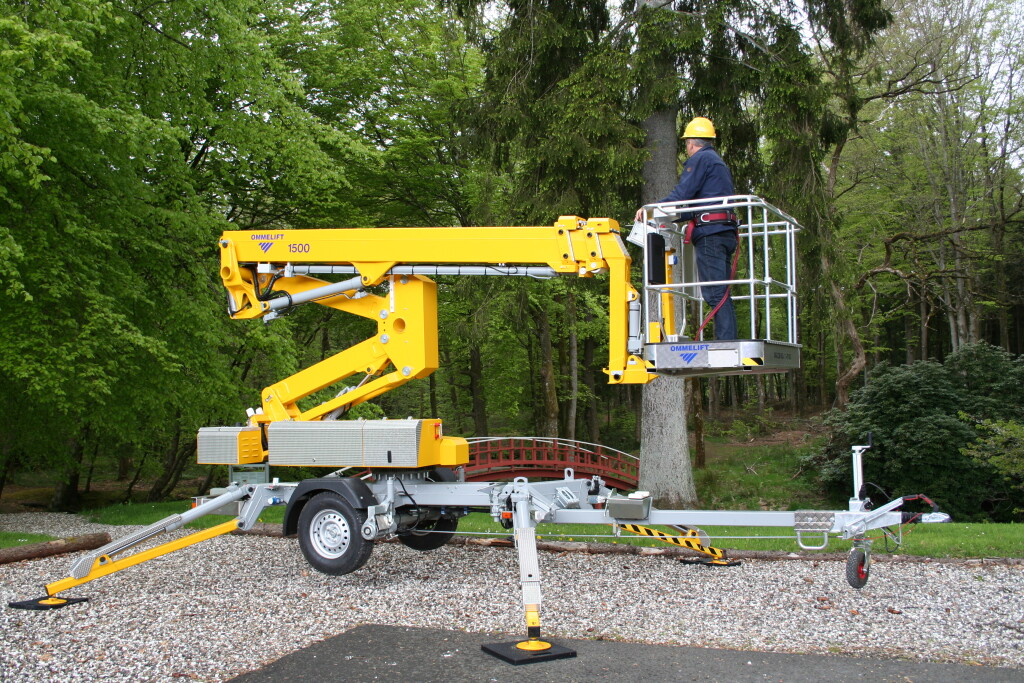

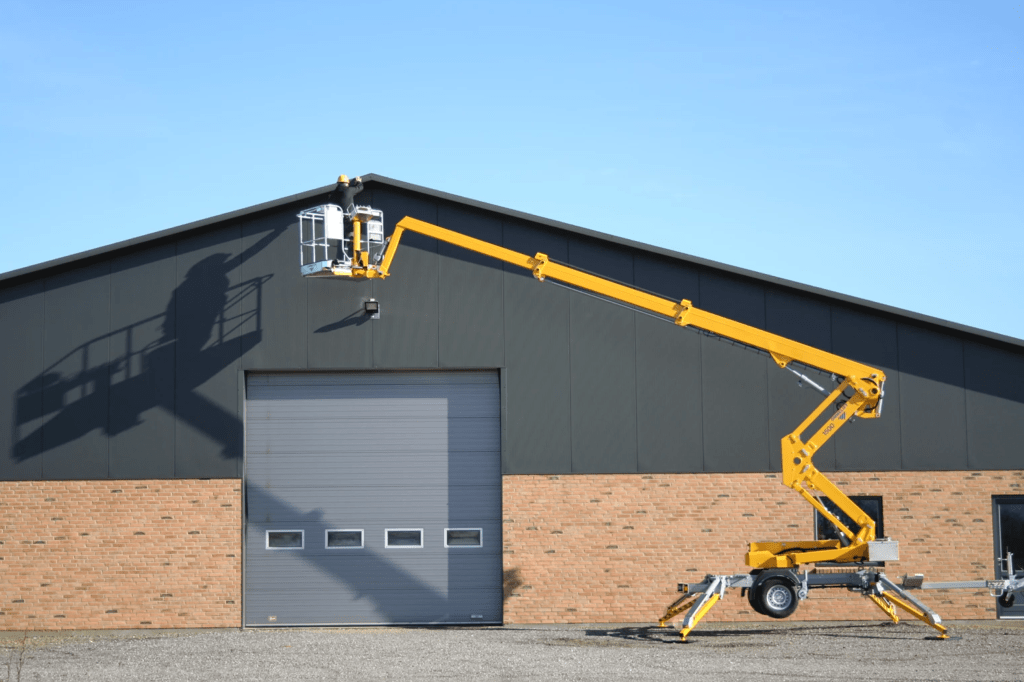

The 1500 EX platforms are mounted with hydraulic propulsion, turnable basket and hydraulic stabilizers. Hydraulic propulsion enables the platform to propel itself around the worksite. Operation from a special platform, giving a complete overview. The turnable basket makes it possible for 2 persons to operate parallel with e.g. a facade.

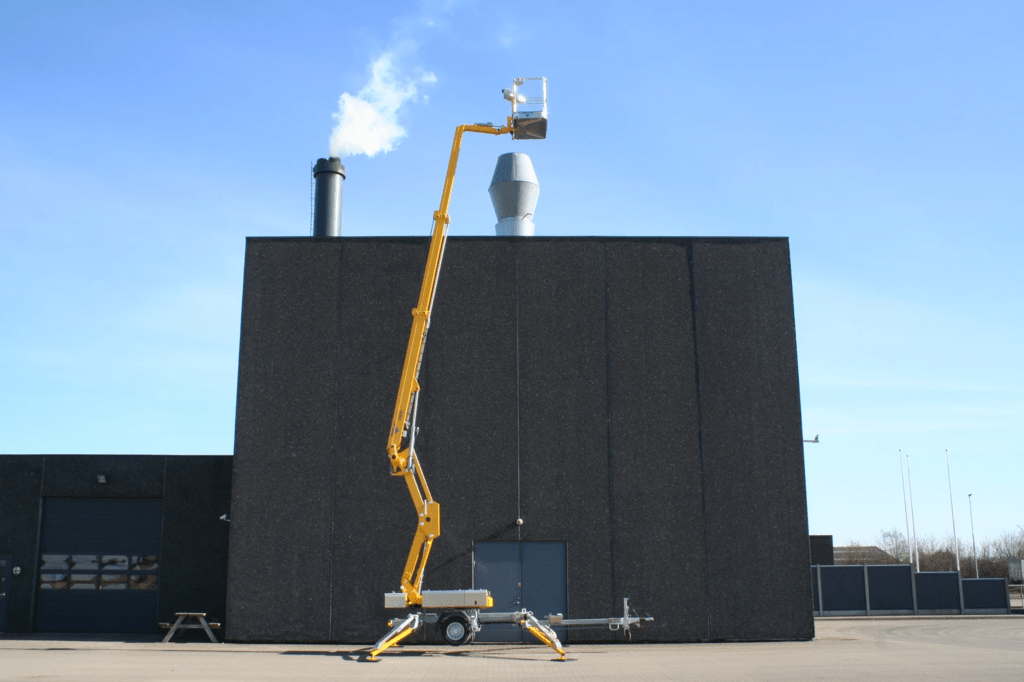

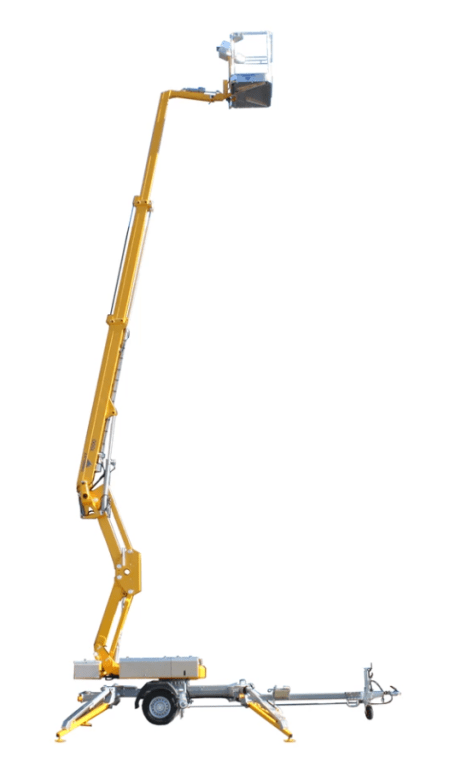

The 1500 EX platforms are equipped with an unfolding scissor system, giving the lift an increased up and over outreach over high obstacles. When operating the scissor system up and down, the basket will follow a vertical line. Furthermore, the lift has no tail swing at rotation. Electric wiring to the basket is protected inside the articulated boom. The cylinder is protected under the boom.

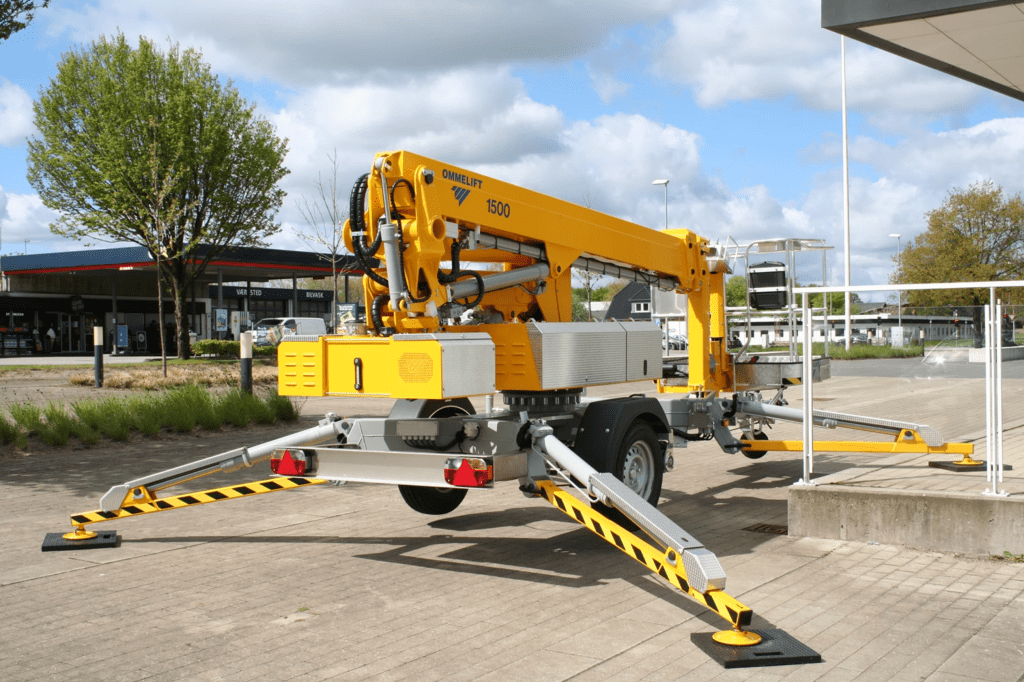

The 1500 EX platforms are fitted with straightforward control, in the basket and at ground level. The hydraulic levers for the stabilizers are placed centrally on the chassis. The basket load of 230 kg applies in the complete working envelope.
Înălţime max. de lucru
230V / acumulatori / diesel / benzină
